Product Description

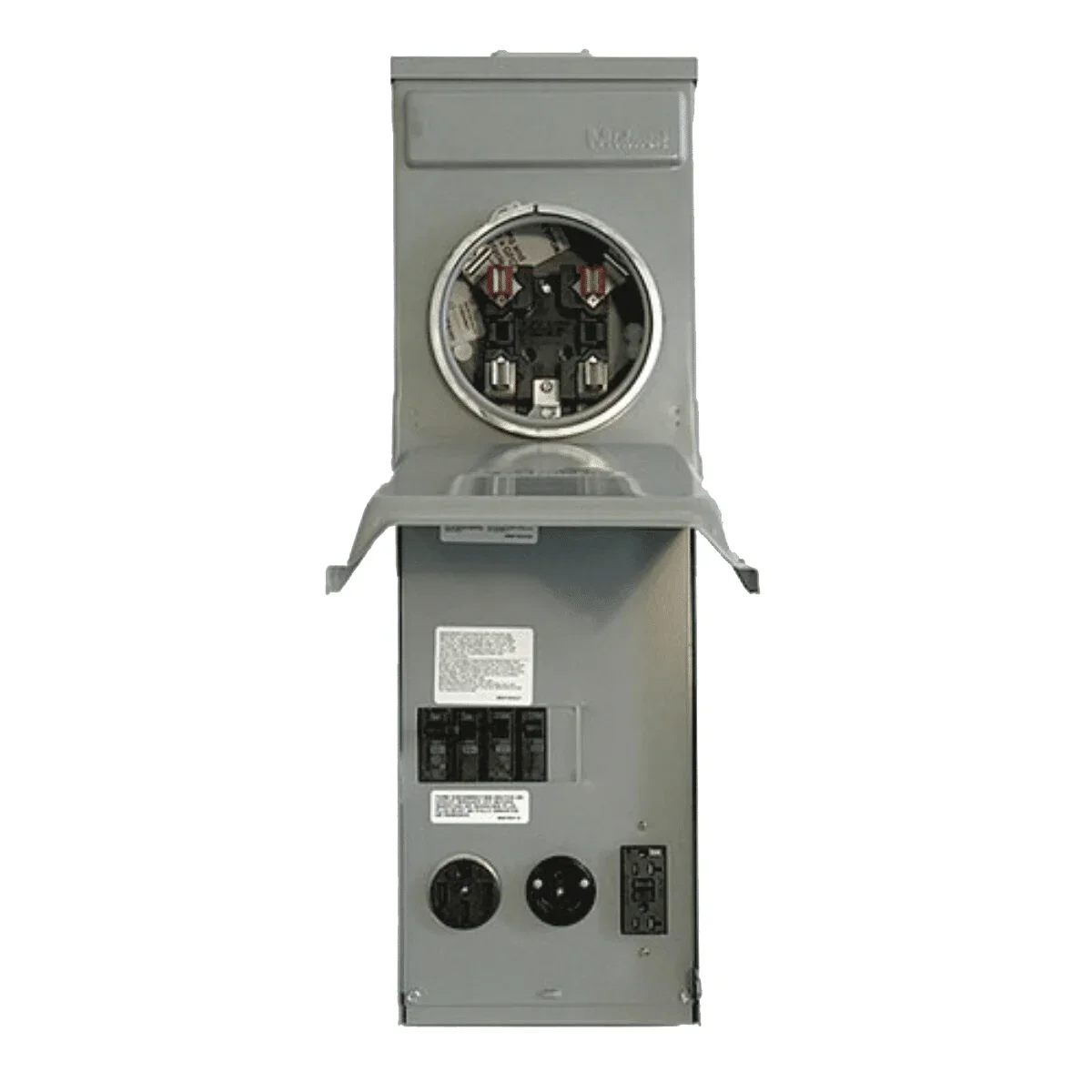

Constructed of G90 galvanized steel, this metered 50/30/20 Midwest post-mount surface box is finished with a gray polyester powder-coated paint that is baked on and NEMA 3R rated for outdoor use. The rolled-edge receptacle door swings up and open and can be locked. Units come factory wired and are assembled with breakers and receptacles installed. Approved for use in Canada.

Features:

All in one construction for factory assured terminations
Rolled edge door for cord protection
Heavy 16 ga galvanized zinc coated steel with highest quality electro deposition finish resists corrosion and fading
Welded flange, NEMA 3R construction for lasting service in outdoor installations
All components are factory wired and assembled, reducing installation time
Door holds in open position for user convenience
All terminals accept copper or aluminum wire for added installation flexibility
Wide range of receptacle configurations
Broad range of concentric knockouts to accommodate wiring needs
All units with 12 to 2 copper/aluminum equipment ground lug
Rolled edge post bottoms to protect service cable
Post door removable for installation ease
Surface heads
Hub provision
LC55N1T load center
Suitable for service equipment
GFCI duplex receptacle options

Product Specifications

UPC:	784567565584
Second Position Circuit Breaker Type:	CB130
Third Position Circuit Breaker Type:	CB120
Wire Size:	6 to 1/0 AWG Stranded (Copper/Aluminum, Line), 14 to 10 AWG Solid/Stranded (Copper, Load), 12 to 8 AWG Solid, 12 to 1/0 AWG Stranded (Copper, Neutral-Large Hole), 10 to 8 AWG Solid, 10 to 1/0 AWG Stranded (Aluminum, Neutral-Large Hole), 14 to 8 AWG Solid,
Material:	G90 Galvanized Steel
Finish:	Zinc Coated
Enclosure:	NEMA 3R
Approval:	UL, CUL
Additional Information:	Applicable Standard NEMA, NEC; Voltage Rating 120/240 V; Cabinet Dimension 9-3/4 Inch W x 5-3/16 Inch D x 30 Inch H; Mounting Surface
Catalog Number:	M075C010
Type:	Metered Ring
Current Rating:	100 Ampere
Circuit Configuration:	1-Phase
Left Position Receptacle Type:	BR54U
Center Position Receptacle Type:	BR32U
Right Position Receptacle Type:	5-20R2GFCI
First Position Circuit Breaker Type:	CB250
CATALOG DESCRIPTION:	MIDWEST ELECTRICS METALLIC RV UNITS ARE MANUFACTURED USING 16-GAUGE, GALVANIZED ZINC-COATED STEEL AND NEMA 3R CONSTRUCTION, WHICH RESISTS CORROSION AND FADING AND PROVIDES LASTING SERVICE IN OUTDOOR APPLICATIONS. UNITS ARE AVAILABLE IN SURFACE MOUNT AND EARTH BURIAL OR PADMOUNT POSTS, OFFERING A WIDE RANGE OF RECEPTACLE CONFIGURATIONS TO FIT YOUR NEEDS.
Category:	Metered Power Outlet Panels
Full Technical Description:	Metered Ring Type; G90 Galvanized Steel Material; Zinc Coated Finish; 6 to 1/0 AWG Stranded (Copper/Aluminum, Line), 14 to 10 AWG Solid/Stranded (Copper, Load), 12 to 8 AWG Solid, 12 to 1/0 AWG Stranded (Copper, Neutral-Large Hole), 10 to 8 AWG Solid, 10 to 1/0 AWG Stranded (Aluminum, Neutral-Large Hole), 14 to 8 AWG Solid, 14 to 4 AWG Stranded (Copper, Neutral-Small Hole), 12 to 8 AWG Solid, 12 to 4 AWG Stranded (Aluminum, Neutral-Small Hole), 12 to 8 AWG Solid, 12 to 2 AWG Stranded (Copper/Aluminum, Ground) Wire Size; UL, CUL Approval; NEMA 3R Enclosure; 100 Ampere Current Rating; 1-Phase Circuit Configuration; CB250 First Position Circuit Breaker Type; BR54U Left Position Receptacle Type; CB120 Third Position Circuit Breaker Type; CB130 Second Position Circuit Breaker Type; 5-20R2GFCI Right Position Receptacle Type; BR32U Center Position Receptacle Type; Applicable Standard NEMA, NEC; Voltage Rating 120/240 V; Cabinet Dimension 9-3/4 Inch W X 5-3/16 Inch D X 30 Inch H; Mounting Surface
Manufacturer:	Midwest Electric Products, Inc.
Manufacturer Brand:	Midwest Electric Products, Inc.
Product Description:	MIDWEST M075C010 100A SURFACE 50/30/20GFCI
Sub-Category:	Outdoor Surface Mount Power Outlet Panel
Cross Reference:	22-RT-123, GE1LM532SS, MH75SM-3
UPC 12 Digit:	784567565584
Loop Lug:	No

Metered Surface Mount RV Pedestal
